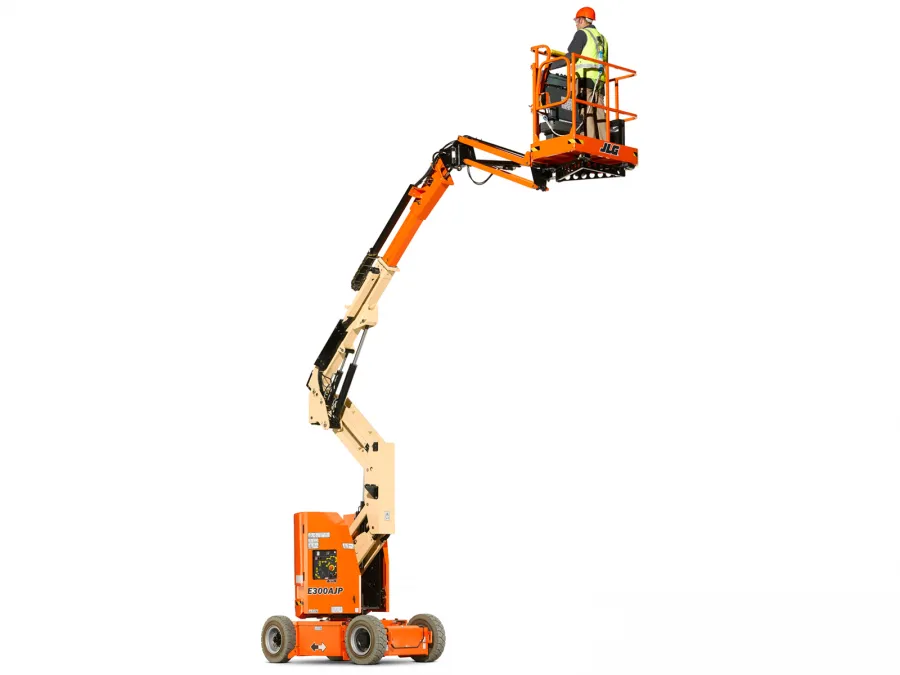

JLG E300AJP Specs ANSI updated
Articulating Boom Lift Specifications
Contact manufacturer to confirm your lift includes ANSI updates.
For specs prior to ANSI updates click here
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
29' 5" |
| Max Horizontal Reach |
20' 1" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Dimensions |
4' 0" x 2' 6" |
|
| Dimensions | Overall Width |
4' 0" |
| Ground Clearance |
4" |
|
| Overall Height Stowed |
6' 7" |
|
| Turning Radius |
10' 2" |
|
| Overall Length |
18' 10" |
|
| Operational | Operating Weight |
15,705 lb |
| Maximum Speed |
3.0 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
