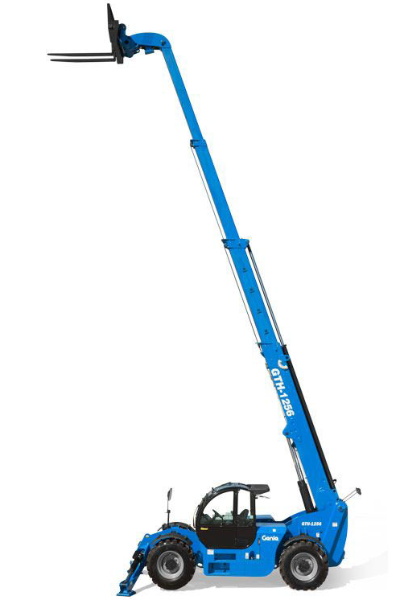

Genie GTH 1256 Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Diesel |
| Drive | 4WS |
| GENERAL | |
| Manufacturer | Genie |
| OPERATIONAL | |
| Lifting Capacity | 12,000 lb |
| Lifting Height | 56' 0" |
| Lifting Capacity at Max Height | 7,000 lb |
| Lifting Capacity at Max Reach | 3,500 lb |
| Operating Weight | 36,600 lb |
| Maximum Forward Reach | 42' 0" |
| Maximum Speed | 18 mph |
| DIMENSIONS | |
| Overall Width | 7' 11" |
| Turning Radius | 11' 8" |
| Ground Clearance | 15" |
| Overall Length | 21' 0" |
| Overall Height Stowed | 8' 9" |
| Wheelbase | 11' 6" |
| Draw Bar Pull | 22,500 lb |
| Max Speed Field to Remain | 18 mph |
| Overall Length Stowed | 21' 0" |
