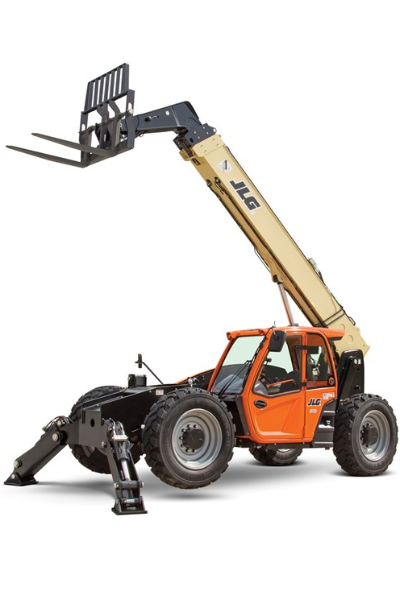

JLG 1043 Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Diesel |
| GENERAL | |
| Manufacturer | JLG |
| OPERATIONAL | |
| Lifting Capacity | 10,000 lb |
| Lifting Height | 43' 0" |
| Lifting Capacity at Max Height | 7,000 lb |
| Lifting Capacity at Max Reach | 2,700 lb |
| Operating Weight | 26,235 lb |
| Maximum Forward Reach | 30' 5" |
| Maximum Speed | 19 mph |
| DIMENSIONS | |
| Overall Width | 8' 1" |
| Turning Radius | 12' 0" |
| Ground Clearance | 17" |
| Overall Length | 19' 9" |
| Overall Height Stowed | 8' 4" |
| Wheelbase | 11' 3" |
| Draw Bar Pull | 24,912 lb |
