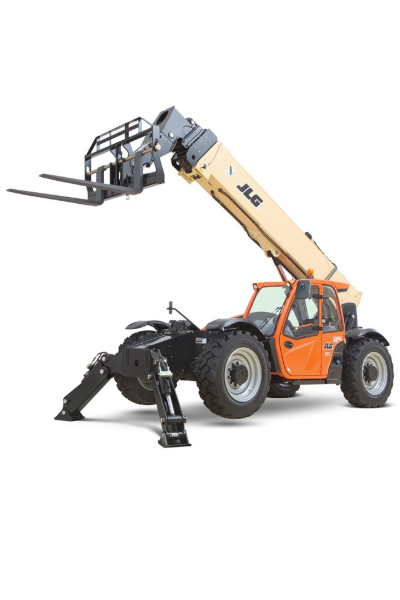

JLG 1255 Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Diesel |
| GENERAL | |
| Manufacturer | JLG |
| OPERATIONAL | |
| Lifting Capacity | 12,000 lb |
| Lifting Height | 55' 0" |
| Lifting Capacity at Max Height | 5,000 lb |
| Lifting Capacity at Max Reach | 3,500 lb |
| Operating Weight | 33,960 lb |
| Maximum Forward Reach | 42' 0" |
| Maximum Speed | 20 mph |
| DIMENSIONS | |
| Overall Width | 8' 5" |
| Turning Radius | 14' 0" |
| Ground Clearance | 18" |
| Overall Length | 20' 1" |
| Overall Height Stowed | 8' 4" |
| Wheelbase | 11' 6" |
| Draw Bar Pull | 25,400 lb |
