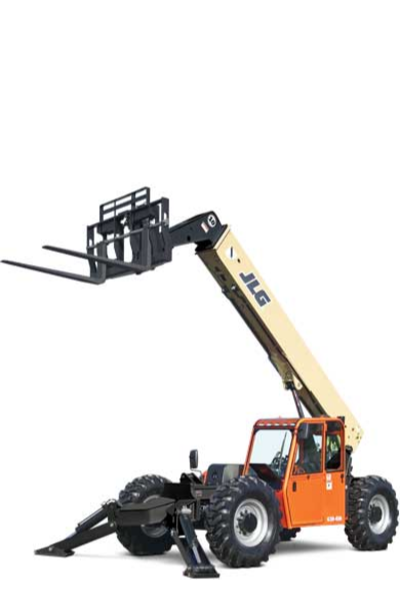

JLG G10 43A Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Diesel |
| GENERAL | |
| Manufacturer | JLG |
| OPERATIONAL | |
| Lifting Capacity | 10,000 lb |
| Lifting Height | 43' 0" |
| Lifting Capacity at Max Height | 7,000 lb |
| Lifting Capacity at Max Reach | 2,700 lb |
| Operating Weight | 27,380 lb |
| Maximum Forward Reach | 30' 7" |
| Maximum Speed | 20 mph |
| DIMENSIONS | |
| Overall Width | 7' 11" |
| Turning Radius | 12' 0" |
| Ground Clearance | 17" |
| Overall Length | 19' 10" |
| Overall Height Stowed | 8' 0" |
| Wheelbase | 11' 0" |
| Draw Bar Pull | 22,000 lb |
| Overall Length Stowed | 19' 10" |
