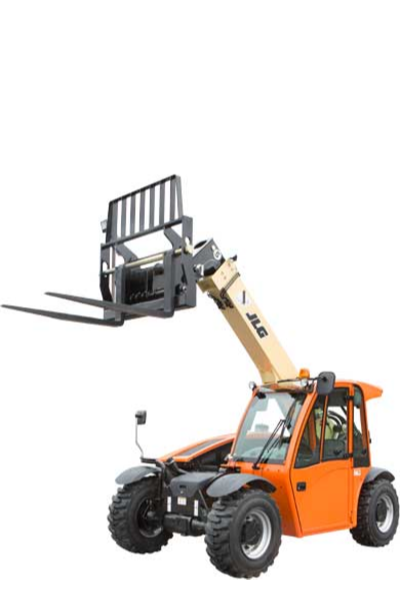

JLG G5 18A Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Diesel |
| GENERAL | |
| Manufacturer | JLG |
| OPERATIONAL | |
| Lifting Capacity | 5,512 lb |
| Lifting Height | 18' 0" |
| Lifting Capacity at Max Height | 4,409 lb |
| Lifting Capacity at Max Reach | 1,764 lb |
| Operating Weight | 11,001 lb |
| Maximum Forward Reach | 11' 0" |
| Maximum Speed | 15 mph |
| DIMENSIONS | |
| Overall Width | 6' 0" |
| Turning Radius | 10' 6" |
| Ground Clearance | 12" |
| Overall Length | 12' 0" |
| Overall Height Stowed | 6' 4" |
| Wheelbase | 7' 6" |
| Draw Bar Pull | 8,902 lb |
