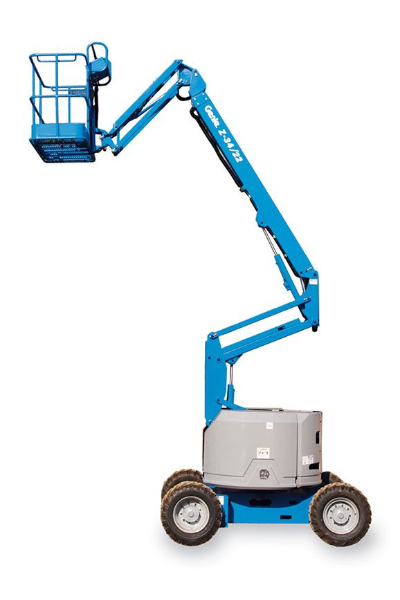

Genie Z-34/22 Specs
| Spec Name | Values |
|---|---|
| ENGINE | |
| Power Option | Bi-Energy, DC Electric |
| GENERAL | |
| Manufacturer | Genie |
| OPERATIONAL | |
| Operating Weight | 12,000 lb |
| Maximum Speed | 4 mph |
| PLATFORM | |
| Platform Height | 34' 6" |
| Horizontal Reach | 22' 3" |
| Weight Capacity | 500 lb |
| Platform Dimensions | 4' 0" |
| Platform Rotation | 180 degree |
| DIMENSIONS | |
| Overall Width | 5' 8" |
| Turning Radius | 13' 1" |
| Ground Clearance | 6" |
| Overall Length | 18' 6" |
| Overall Height Stowed | 6' 7" |
| Wheelbase | 6' 2" |
